SmartWind
SmartWind is the 100% electric road sweeper which is completely unique, as it is the most compact ride-on road sweeper with raised offloading.
Featuring an innovative “steer-by-wire” system controlled by a control stick which makes it safe and manageable, it is the ideal solution for cleaning both indoor and outdoor areas of small-medium size. Ecological and versatile, this ride-on road sweeper improves the quality of life both of its operator and residents by completely eliminating CO2 emissions and providing a 40% reduction in noise levels.
Get a Quote Download Brochure
Steering
Tenax SmartWind is equipped with an innovative electric steering system controlled by an ergonomic electronic control stick which allows for precise steering in all situations. Operator safety is increased by the presence of sensors which automatically adjust the steering depending on the speed. At the same time, the swiveling and damped rear wheels make the steering light and agile.
Batteries and Runtime
SmartWind can be equipped with different types of 24 Volt low voltage battery packs designed specifically for the device. The possibility to use different types of batteries (LiFePO4, AGM and lead acid) allows the machine to be adapted to the specific working requirements and budget of each customer. Depending on the battery type chosen, runtime ranges from eight to ten hours, and is therefore able to cover an entire work shift. The tried and tested technology used minimizes the environmental footprint and offers high levels of recyclability, as well as high levels of safety thanks to the low voltage.
Charging
SmartWind can be equipped with on-board or external single-phase battery chargers with different voltages, power ratings and charging times to fully meet customer requirements.
Sweeping
The SmartWind electric ride on sweeper is equipped with a mechanical suction waste collection system. A mobile, self-regulating cylindrical central brush carries away the waste collected by the counter-rotating brushes, located in front of the front axle. Thanks to the panel filter available in different versions, including polyester and HEPA, a filtration level of 99% is guaranteed, with all fine dust up to PM 2.5 retained. It is also equipped with a 120 mm (4.72 in) diameter 3 m (9.84 ft) long leaf suction hose to reach the most difficult locations. During the work phase, the self-balancing nature of each component adapts to any surface to ensure perfect operation at all times.
Waste Hopper
The watertight rear waste hopper of 210 l (55.48 gal) capacity is made of Fe360 steel. It can be used with or without standard disposable plastic refuse sacks. Rear raised offloading at a height of 1,500 mm (59.06 in) allows for fast, easy unloading without any physical exertion by the operator. The 50 l (13.21 gal) clean water tank guarantees maximum runtime and use of the dust abatement system.
Driving Comfort and Safety

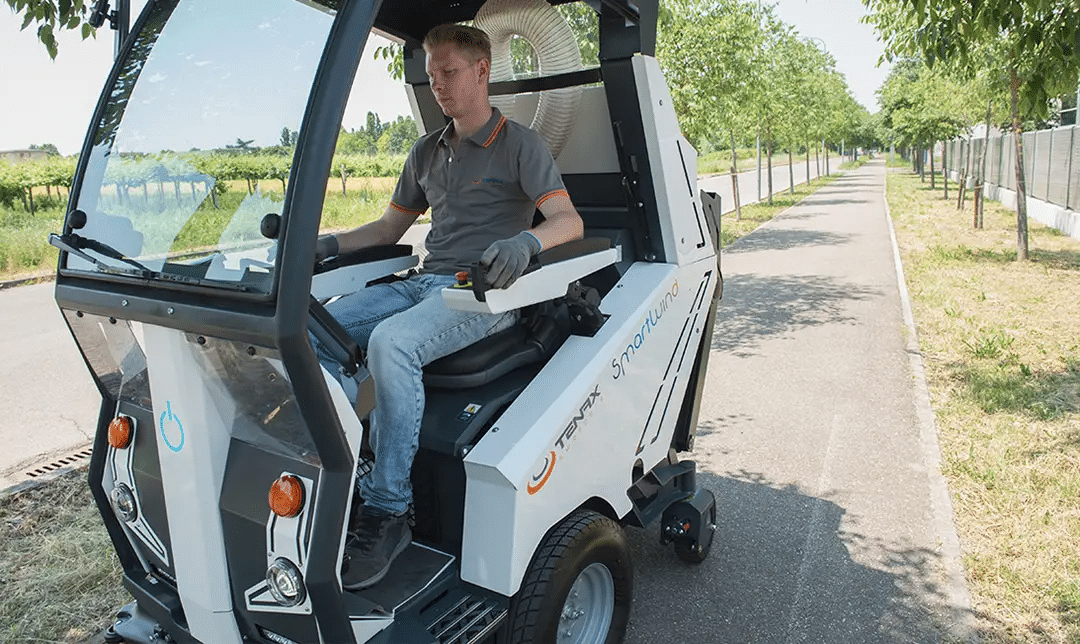

SmartWind features a central driving position which is adjustable and ergonomic for a unique driving experience. The protective roll-bars ensure complete safety while driving, while the ergonomic control stick on the right-hand armrest provides increased driving comfort. The control LCD display is ergonomic and intuitive, featuring a user-friendly interface; it is installed in a central position and offers great ease of use which makes it possible to concentrate on the work to be performed without any distractions. A soundproofed cab with panoramic LAMINATED anti-glare windscreen can also be installed, with fully glazed doors to provide optimal visibility. It is also possible to obtain an even wider view of the surrounding area thanks to supplementary video cameras.
Connectivity
Fleet monitoring and digitization can facilitate the work of both owners and operators. Tenax offers targeted services and support, with constant monitoring to minimize downtime and operating costs. The goal is to guarantee use of the sweepers at an optimum level by eliminating all operating inefficiencies.
Compact Dimensions
SmartWind’s extremely compact external dimensions allow it to be used on any indoor or outdoor surface, and make it extremely convenient and agile in urban and pedestrianized locations.
Gallery
