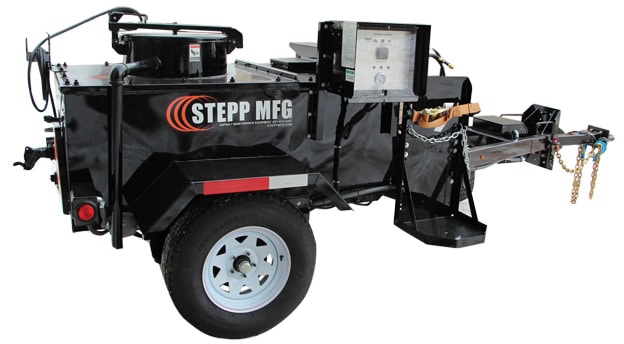

SGS Flue Fired Kettle
Stepp’s SGS Flue Fired Kettles are designed to heat and apply various bitumen’s (AC’s and MC’s) and emulsions for crack filling, spray tacking, and seal coating. They are to be equipped with your choice of propane or diesel heating systems with automatic temperature controls, and hydraulically powered pumping systems.
High Temp Applications(250-450 °) for Low Temp applications (100-300°) see SBF Bottom Fired Kettles
Benefits
- Designed for High Temp asphalts
- 6″ Flue Fired Tank for fast heat up
- Propane or Diesel Fired
- Gravity Drain or Hydraulic Pumping System
- 20″ Manway, 100# Loading Chute, or barrel hood with Hoist
Sizes
Available in:
- 180 Gallon
- 275 Gallon
- 360 Gallon
- 580 Gallon
Options
SGS – For use with Cutbacks & AC. Each base unit includes: Burner, Gravity Drain, Electric Brakes, and a 2 Light System
HEAT OPTIONS (MUST CHOOSE LP OR DIESEL SYSTEM)
- LP Burner
- Diesel Burner with Automatic Temperature Controls
LP HEAT OPTIONS (MUST CHOOSE IGNITION TYPE)
- Constant Ignition for LP Burner OR
- Spark Ignition with Auto Temperature Controls for LP Burner
Additional LP Heat Options
- Extra Bottle Rack (one comes standard)
- 100# LP Cylinder
- Mounted LP Bottle
Additional Diesel Heat Options
- Diesel Burner Enclosure
Additional LP or Diesel Heat Options
- Electric Overnight Heat 110V 1500W
- Electric Overnight Heat 220V 3000W (580 gallon tank only)
TANK OPTIONS
- Beacon Style Strobe Light
- Arrowboard
- 10# Fire Extinguisher
- Tool Box 10″x10″x24″
- SMV Sign
- Spare Tire w/ Holder
- LP Hand Torch
- 20# LP Bottle & Rack (for diesel systems)
- Hose Reel for Hand Torch
- Washdown System
- Hose Reel for Washdown
- Pour-Pot Cleaning Bracket
- Manual Holder
LOADING HATCH OPTIONS *in lieu of standard 20″ manway
- Safety Loading Chute
- 100# Safety Loading Chute
- Barrel Hood
- Material Loading Hoist (available only w/ barrel hood)
- Material Loading Basket (available w/ barrel hood or 100# chute)
AGITATOR OPTIONS (N/A with Loading Basket)
- Hydraulic Agitator
- Electric Agitator with 7 Day Programmable Timer
PUMPING SYSTEM OPTIONS *in lieu of standard gravity drain base unit
(*Submerged Pump System)
- Hydraulic Pumping System using 20HP Kohler LPG Engine
- Heated 15′ Hose 0-450°
- Heated 20′ Hose 0-450°
- Heated Overhead Boom w/ 12′ Hose and Steel Wand
- Aluminum Wand in lieu of Steel
ENGINE OPTIONS FOR PUMPING SYSTEM *in lieu of standard Kohler LP Engine
- 16HP Kubota Diesel Engine
- Kubota Engine Enclosure
- 13HP Gasoline Honda Engine
- Honda Engine Enclosure
- Kohler Engine Enclosure
SPRAY BAR OPTIONS
- 6′ Full-circulating Deluxe Tack Bar with Tether Control
- 8′ Deluxe Tack Bar (upgrade)
LIGHT OPTIONS
- 2 Light LED
- 4 Light Standard (converter)
- 4 Light LED (converter)
BRAKE OPTIONS
- Hydraulic Brakes- Single Axle (180, 275, 360 gallon tanks)
- Hydraulic Brakes- Tandem Axle (580 gallon tank)
PAINT (MUST CHOOSE ONE)
- Hwy Orange
- Black
- Yellow
- Other: __________
HITCH (MUST CHOOSE ONE)
- 2-5/16″ Ball
- 3″ Pintle
LIGHT PLUG STYLE (MUST CHOOSE ONE)
- 6 Pin Round
- 7 Pin RV
- 7 Pin Round (4-light system only)
Media/Specifications
- SGS Sell Sheet with Quick Spec
- SGS Spec
- For Bidding Spec please call 651-674-4491

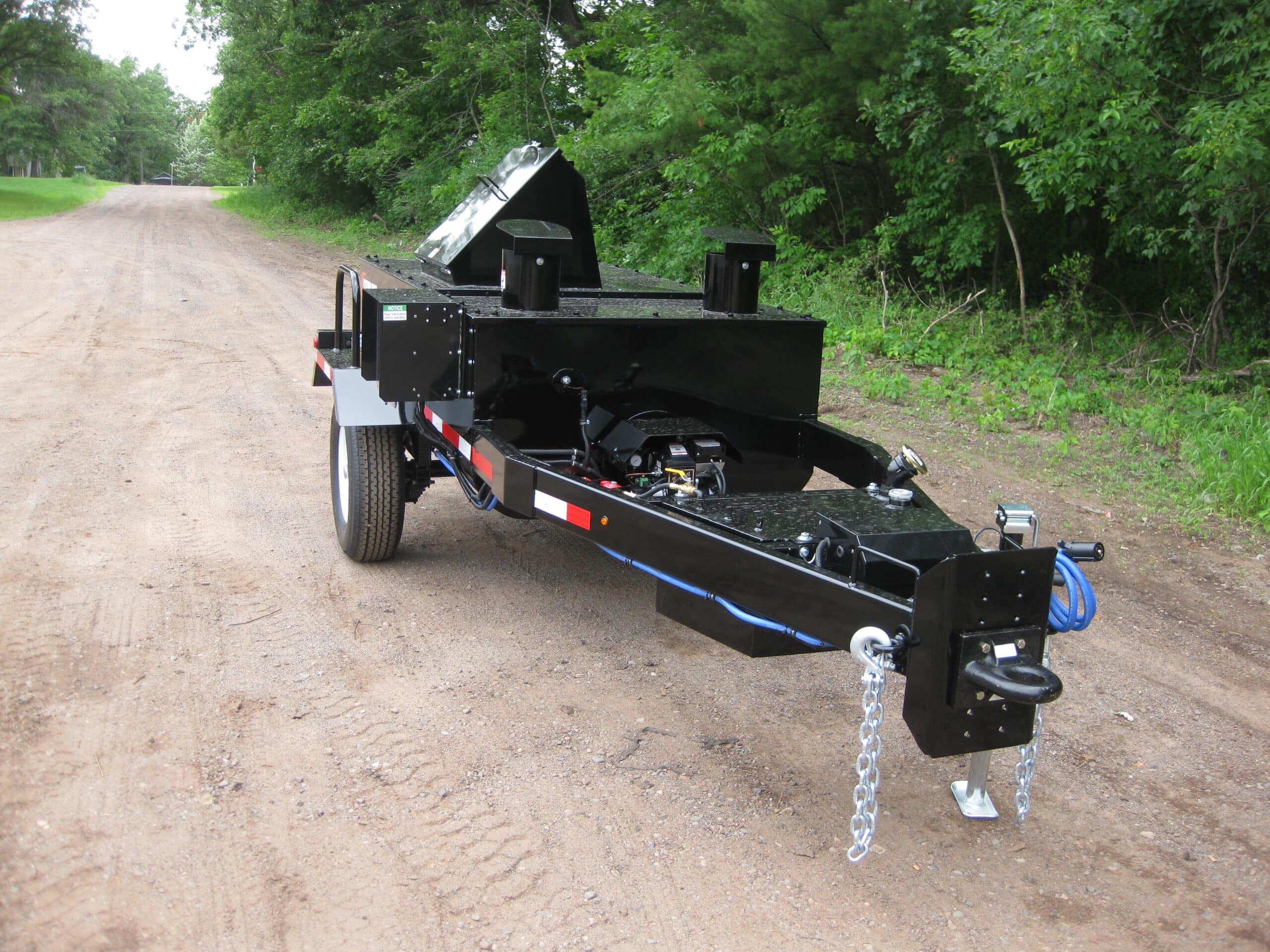

Gallery
