SPH Dump Style Premix Heater
Stepp Mfg’s SPHD dump style pothole patcher is the King of Hot Boxes, designed with the end user in mind. The low profile design and dumping capabilities, joined with an oil jacketed heating system, make this the most advanced patching trailer in the world. The Stepp SPHD Dump Trailer is designed with the GREEN friendly exhaust that is reused for better burner efficiency; putting the environment first and putting GREEN back in your pocket!
Benefits
- Diesel Fired Burners with Automatic Temperature Controls
- 50° Dumping Angle via Truck Style Scissor Hoist
- Oil Jacketed Heating System for Smooth, Even Heat
- Top Door Lift Assist is equipped with gas operated shocks to assist in top door opening.
- Recirculating internal exhaust
- 2″x6″x3/16″ Rectangular steel tubing frame with one piece shackle
- Lowest Profile Hopper on the Market
- Designed with proper weight distribution in mind “ No Outriggers Needed”
- 12,000# Electric over Hydraulic Scissor Hoist/Superior Stability
- Folding Shoveling Platform allows optional discharge directly to the roadway
- One-piece, Bolt-on Shackles- 250% Stronger than the Competition’s
Sizes
Available in:
- 2.0 (3 ton) cubic yards
- 3.0 (4 ton) cubic yards
Options
Each base unit includes: Diesel Burner, Automatic Temperature Controls, Hydraulic Dump, Oil Jacket, Battery Charger, Electric Brakes, and a 2 Light System.
HEAT OPTIONS
- Diesel Burner Enclosure
- 7 Day 24 Hr Diesel Burner Timer
- Electric Overnight Heat 110V 1500W (cold mix use)
- Electric Overnight Heat 220V 3000W (hot mix use)*
TRAILER OPTIONS
- Flush Mounted Strobe Light*x2
- Beacon Style Strobe Light
- Arrowboard
- 10# Fire Extinguisher
- Tool Box 10″x10″x24″
- SMV Sign
- Spare Tire w/ Holder
- Compactor Plate Carrier*
- 15 Gallon Plastic Water Tank
- Stainless Steel Tool Holders*x2
- Platform w/ Railing and Steps (not available with tack tank)
- LP Hand Torch w/ 20# LP Bottle
- Hose Reel for Hand Torch
- Washdown System*
- Hose Reel for Washdown*
- Shovel Cleaning Compartment*
- Hydraulic Top and Discharge Doors
- Expanded Metal Basket (not available with tack tank)
TACK TANK OPTIONS
*Auto temp controls included
- Tack Tank w/ Diesel Burner and Gravity Discharge
- Tack Tank w/ Diesel Burner and Pumping System
Engine Options (*required w/ tack tank pumping system)
*Engine also available w/o tack tank to run the hydraulic system in lieu of electric
- Kubota Diesel Engine
- Honda Gas Engine
- Engine Enclosure
Additional Options for Tack Tank
- Electric Overnight Heat for Tack Tank 110V 1500W
- Hose Reel for Tack Hose
- Aluminum Wand in lieu of Steel
LIGHT OPTIONS
- 2 Light LED
- 4 Light Standard (converter)
- 4 Light LED (converter)
BRAKE OPTIONS
- Hydraulic Brakes- Tandem Axle
PAINT (MUST CHOOSE ONE)
- Hwy Orange
- Black
- Yellow
- Other: __________
HITCH (MUST CHOOSE ONE)
- 2-5/16″ Ball
- 3″ Pintle
LIGHT PLUG STYLE (MUST CHOOSE ONE)
- 6 Pin Round
- 7 Pin RV
- 7 Pin Round (4-light system only)
2020 Stepp SPHD dump style hot box pothole patcher
Stepp Mfg SPHD 2 0 Dump Style Hot Box with Tack Tank Training video
Loading asphalt hot box

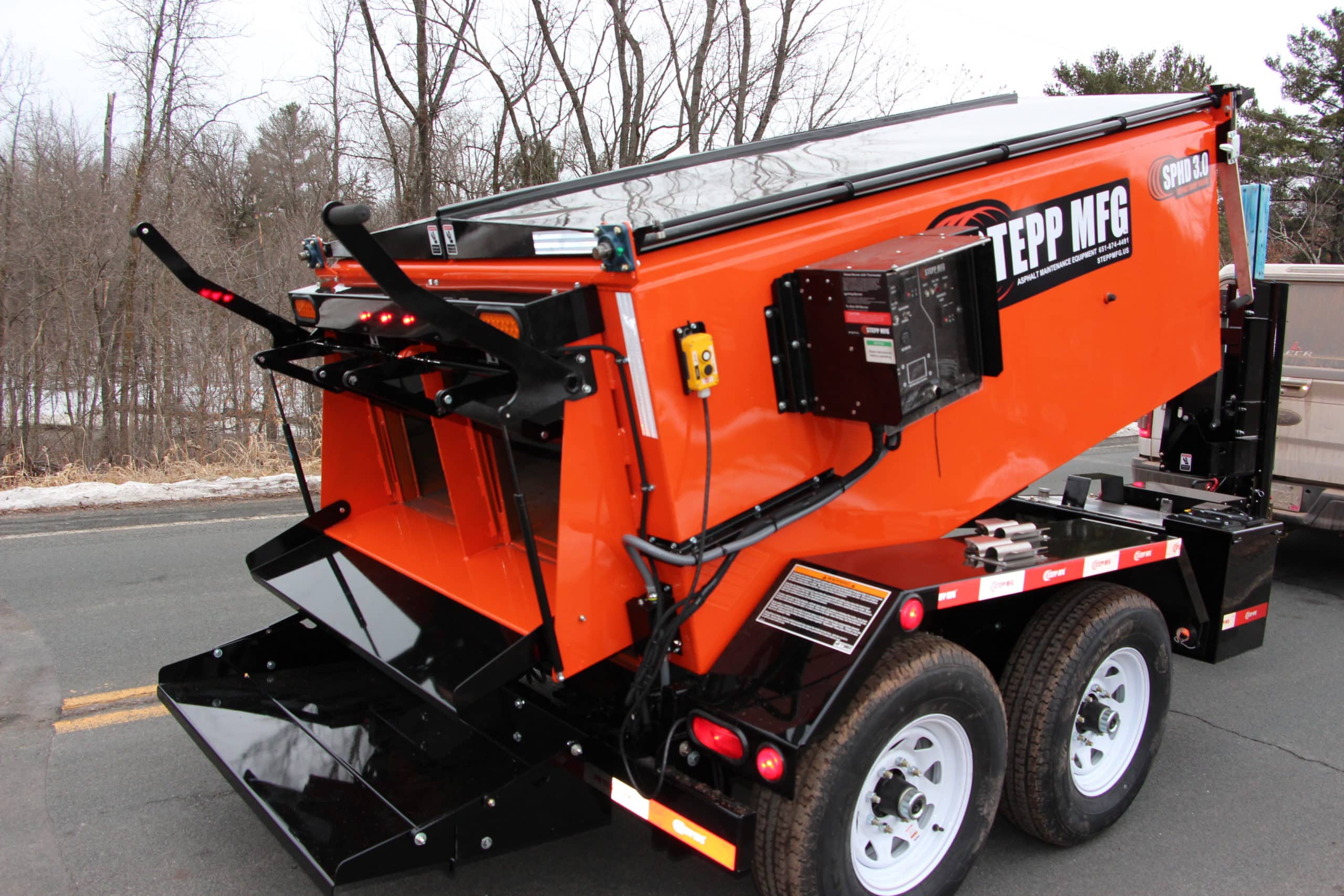

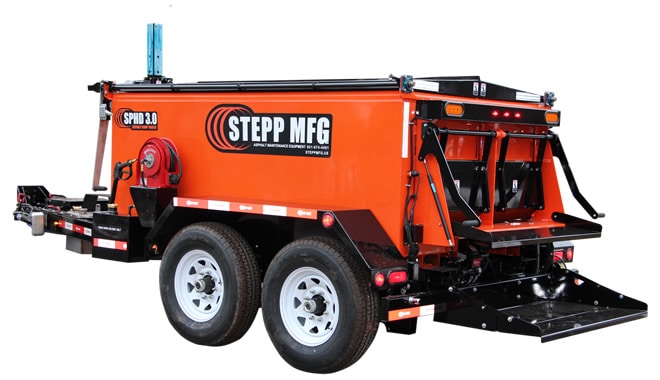

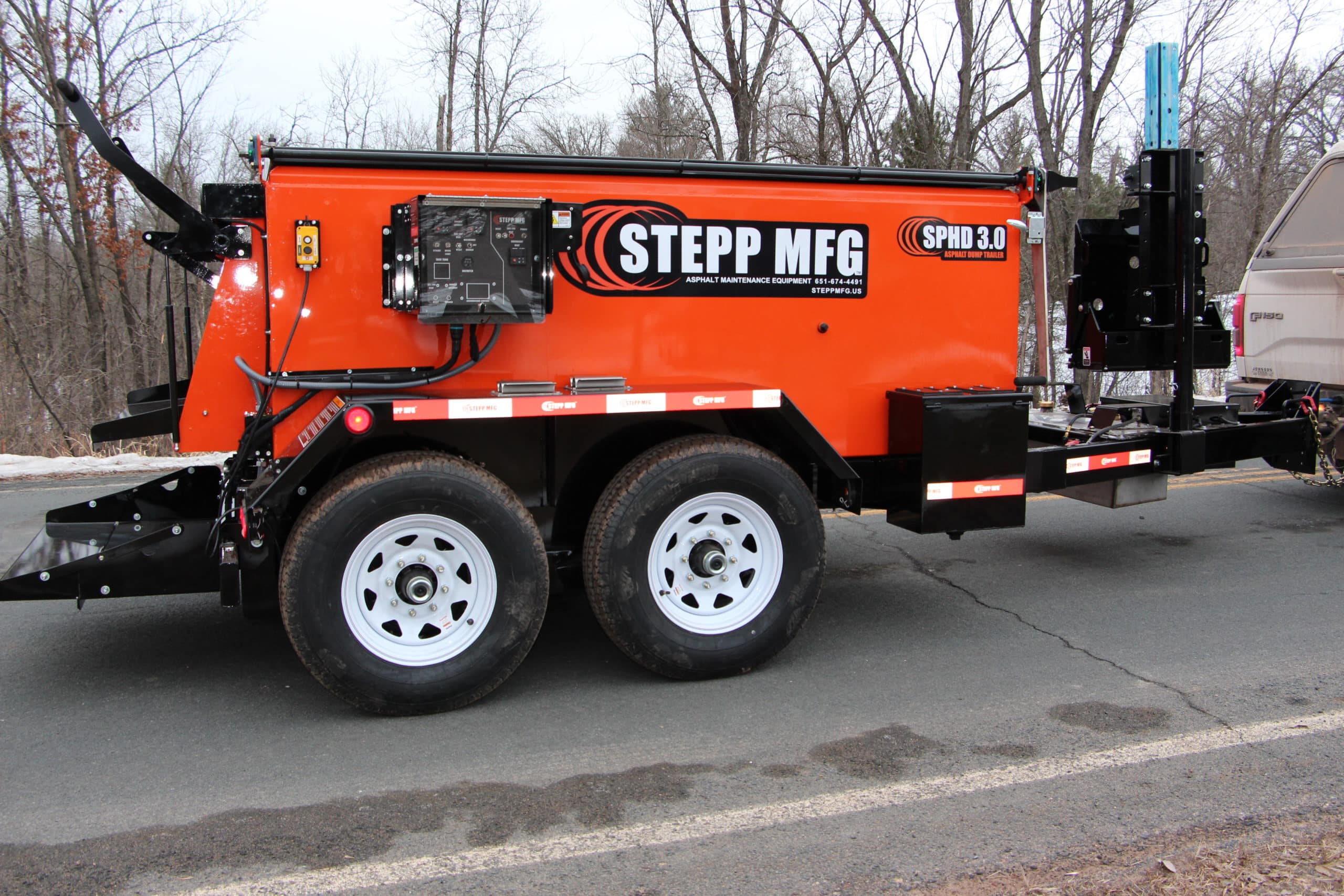

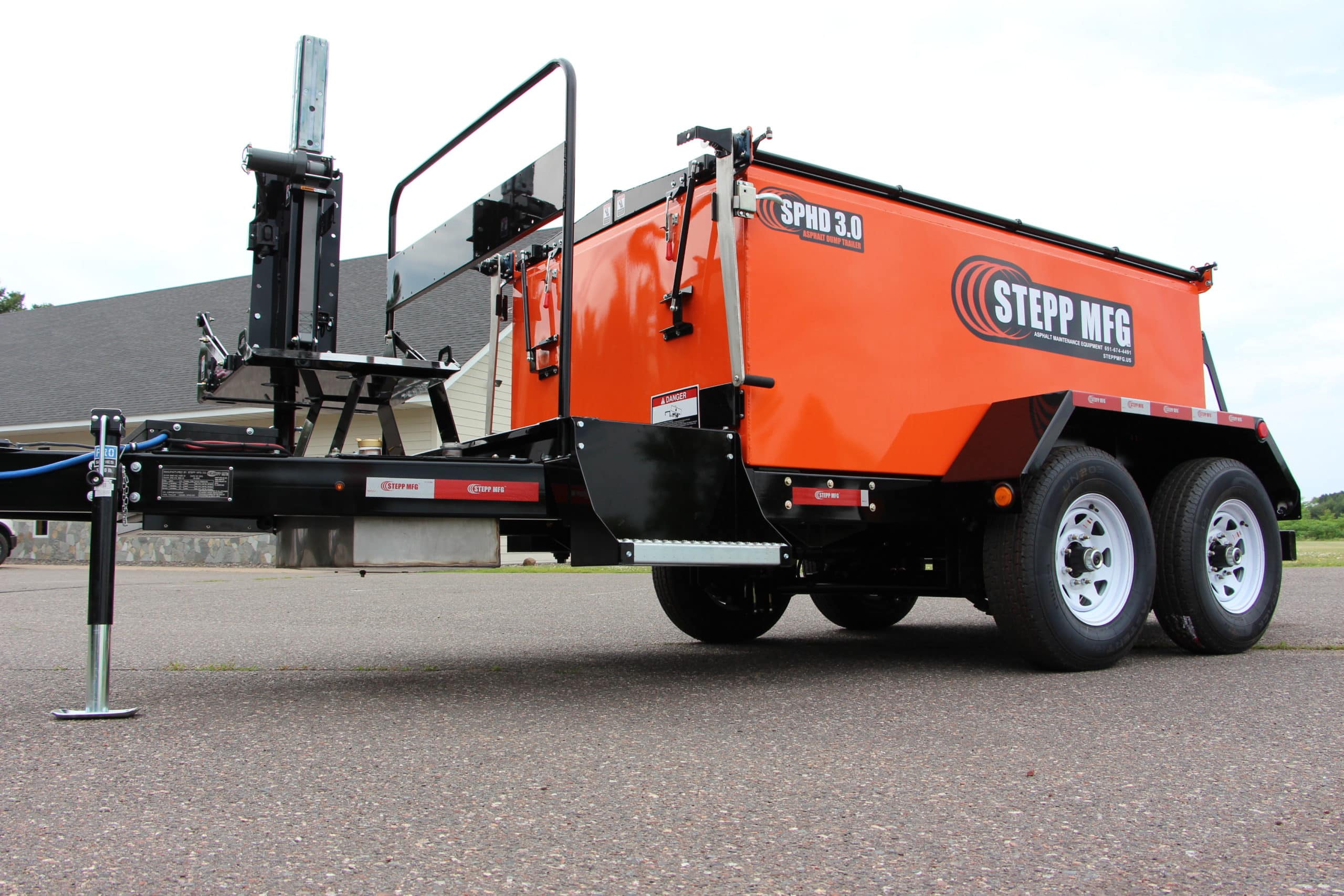

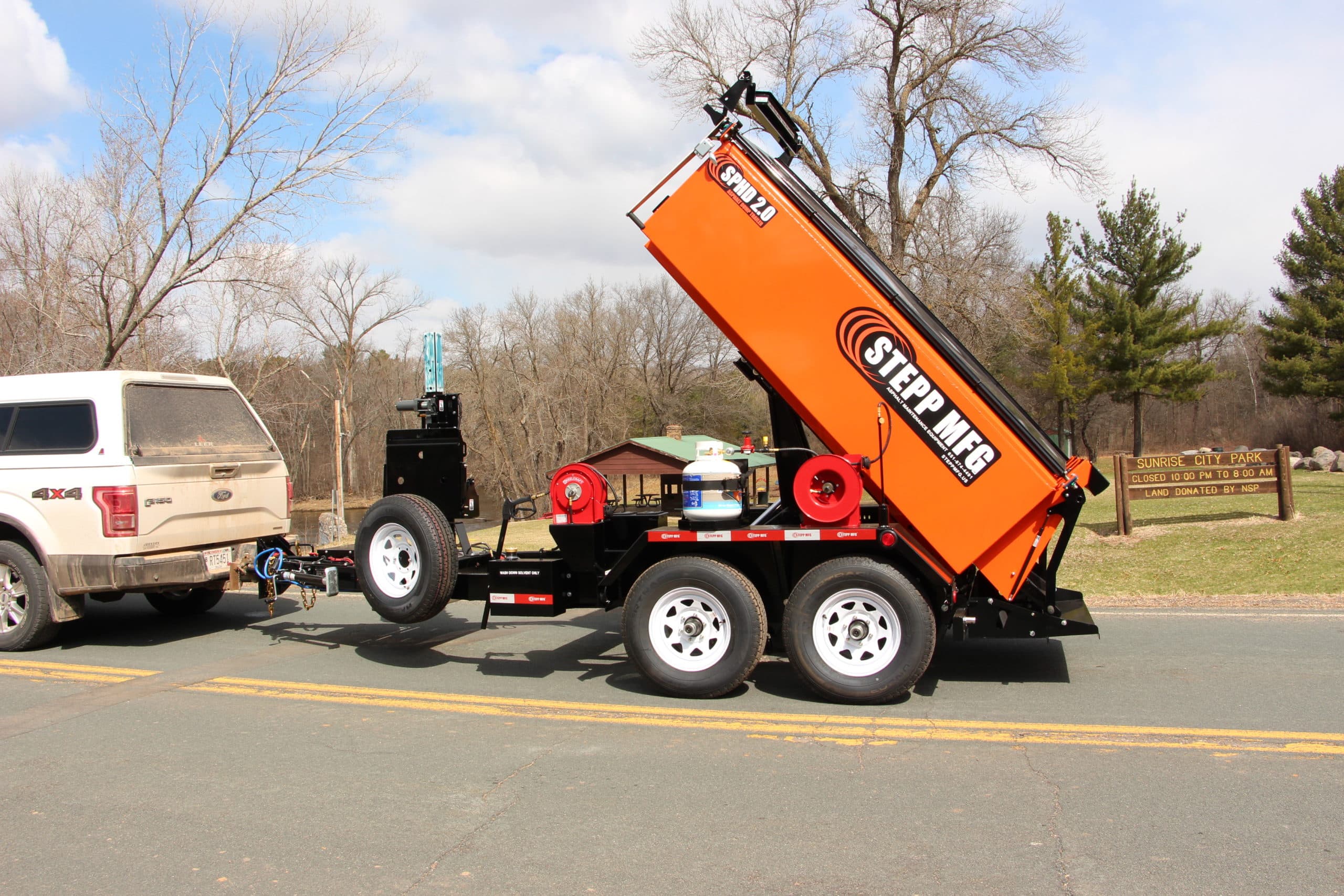

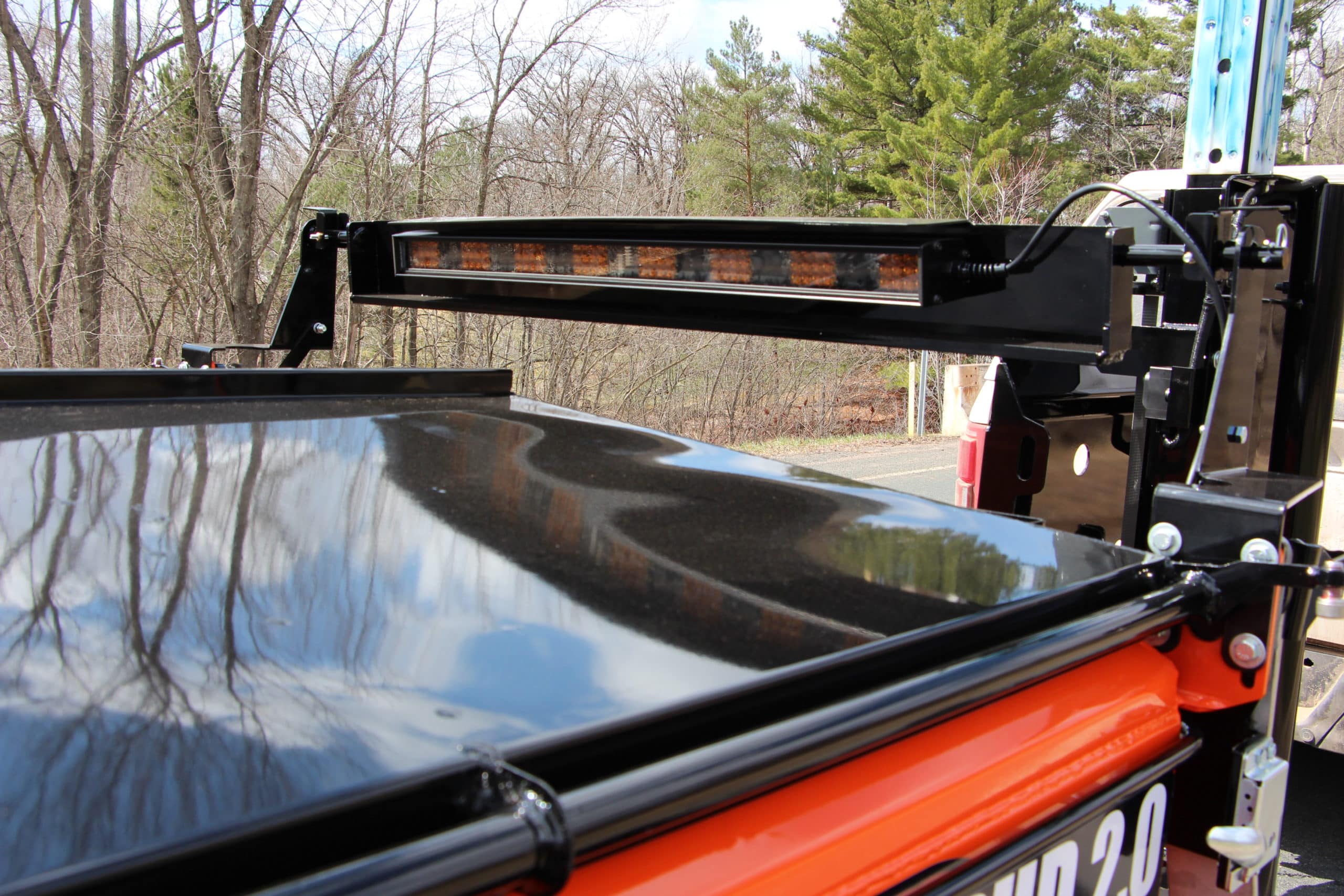

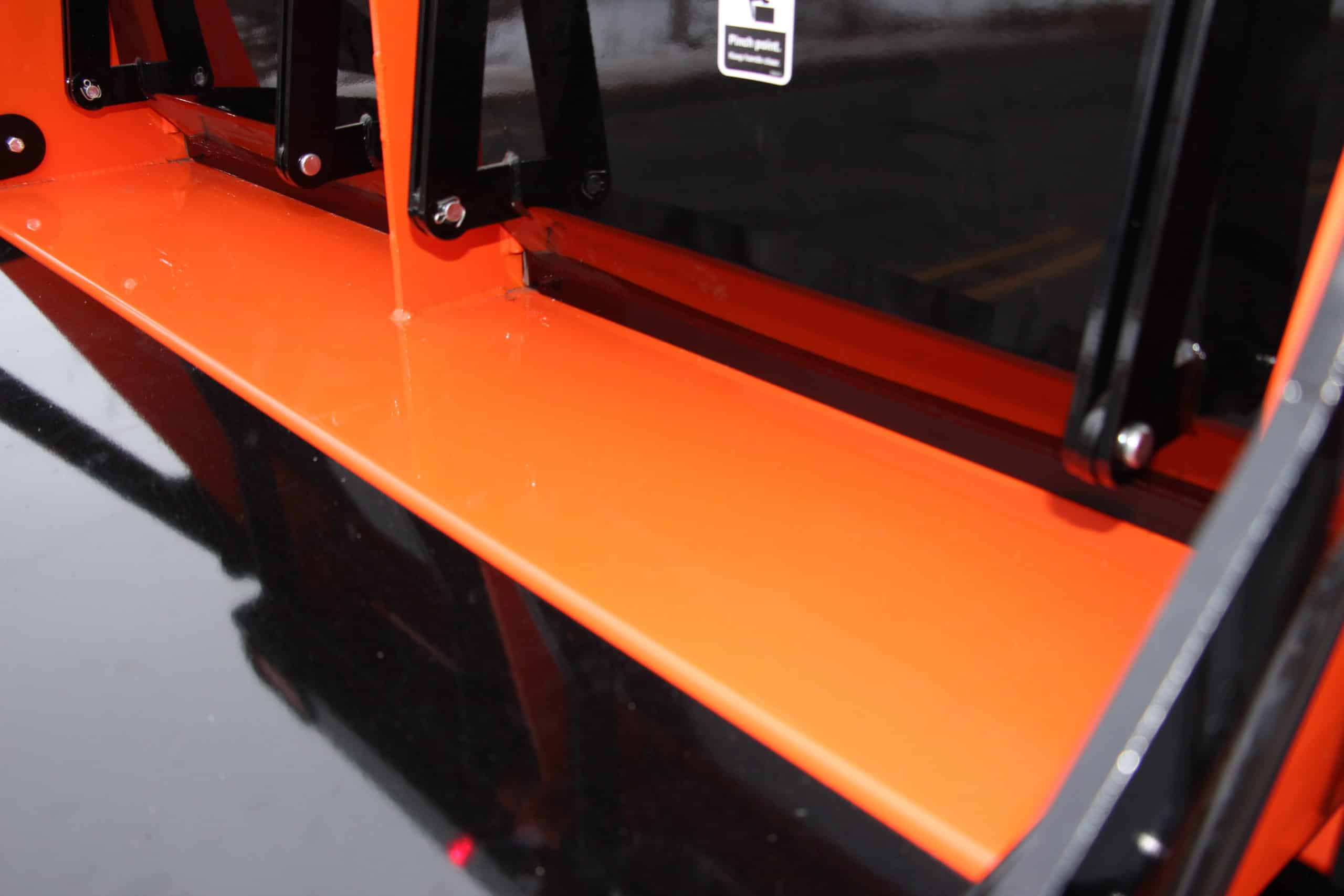

Gallery
