Swaploader 100 Series Hook-Lift Hoist Trucks
Lorem ipsum dolor sit amet, consectetur adipiscing elit. In sed congue erat. Phasellus interdum posuere placerat. Integer lobortis, dui sed ultrices malesuada, velit diam vulputate mauris, vel fringilla nisl elit sed odio. Morbi ac condimentum magna. Vestibulum tempus, nibh in porta iaculis, purus lorem elementum nulla, vel condimentum nulla purus in felis.

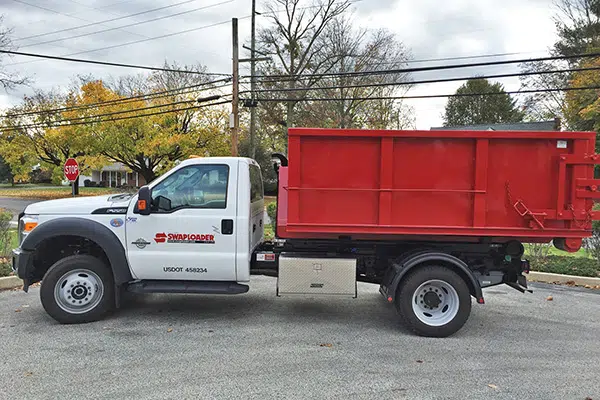

SL-105 (10,500 lb. Capacity) Hook Lift
- Recommended CA: 96″ (commonly mounted on 84″ CA) Recommended GVWR: 19,000 lb.
- Required Clear Frame (useable) Rail: 130″
- Chassis Frame Height: Up to 40″
- Body Lengths: 10′ to 13′
- Hook Height: Fixed 36″
- Flow: 7.2 GPM @ 1,000 RPM
- PSI: 3,250
SL-145 (14,000 lb. Capacity) Hook Lift
- Recommended CA: 120″
- Recommended GVWR: 26,000 lb.
- Required Clear Frame (useable) Rail: 152″
- Chassis Frame Height: Up to 40″
- Body Lengths: 12′ to 15′
- Body Lengths w/CVS Option: 10′ to 15′
- Hook Height: Fixed 36″
- Flow: 11.4 GPM @ 1,000 RPM
- PSI: 3,250
SL-180 (18,000 lb. Capacity) Hook Lift
- Recommended CA: 138″
- Recommended GVWR: 26,000 lb. to 31,000 lb.
- Required Clear Frame (useable) Rail: 172″
- Chassis Frame Height: Up to 40″
- Body Lengths: 14′ to 18′
- Body Lengths w/CVS Option: 12′ to 18′
- Hook Height: Fixed 36″ or Adjustable 36″ to 54″
- Flow: 11.4 GPM @ 1,000 RPM
- PSI: 3,250
SL-185 (18,000 lb. Capacity) Hook Lift
- Recommended CA: 120″
- Recommended GVWR: 26,000 lb. to 31,000 lb.
- Required Clear Frame (useable) Rail: 156″
- Chassis Frame Height: Up to 40″
- Body Lengths: 12′ to 16′
- Body Lengths w/CVS Option: 10′ to 16′
- Hook Height: Fixed 36″ or Adjustable 36″ to 54″
- Flow: 11.4 GPM @ 1,000 RPM
- PSI: 3,250
